Our Products
We supply a wide variety of UPS systems, covering capacities from 500VA up to 500kVA. Final system selection is based on load requirements, runtime, redundancy, and application needs.
Who Are We
Powerguard Solutions is a Malaysia based power protection specialist delivering engineered UPS solutions for commercial, industrial, and mission critical applications, ensuring reliable uptime and business continuity.
What We Provide
- Offline / Standby UPS
- Line Interactive UPS
- Single Phase Online UPS
- 3-Phase In / 1-Phase Out UPS
- Three Phase Online UPS
- Modular UPS Systems
- Rack Mount UPS
- UPS Batteries & Accessories
Our Mission
To deliver reliable, scalable power protection through a focused approach, proven practices, and responsive local support.
Our Main Products
01.
Offline / Standby UPS
0.5kVA – 3kVA
Provides basic backup by switching to battery during mains failure, suitable for non critical loads with minimal power conditioning requirements. Used in home offices, small businesses, point-of-sale systems, and personal computing environments.
02.
Line Interactive UPS
0.6kVA – 3kVA
Equipped with automatic voltage regulation (AVR) to correct input voltage fluctuations without battery usage, ideal for unstable utility power environments. Used in small offices, network closets, retail environments, and entry level server and communication systems.
03.
Single Phase Online UPS
1kVA – 10kVA
Double conversion topology delivering continuous, regulated output with zero transfer time for critical single phase loads. Used in data rooms, healthcare equipment, laboratories, broadcast systems, and critical IT infrastructure.
04.
3-Phase In / 1-Phase Out UPS
10kVA – 60kVA
Accepts three phase input while supplying single phase output, enabling efficient support of high capacity single phase critical equipment. Used in commercial buildings, manufacturing facilities, data rooms, and applications requiring high single phase power capacity.
05.
Three Phase Online UPS
10kVA – 500kVA
High availability double conversion systems designed for industrial and mission critical applications requiring stable three phase power. Used in data centres, industrial plants, airports, hospitals, financial institutions, and mission critical infrastructure.
06.
Modular UPS Systems
20kVA – 500kVA (scalable)
Hot swappable modular architecture supporting N+1 redundancy, flexible capacity expansion, and reduced mean time to repair (MTTR). Used in large data centers, telecommunications hubs, and mission-critical environments requiring scalability and redundancy.
07.

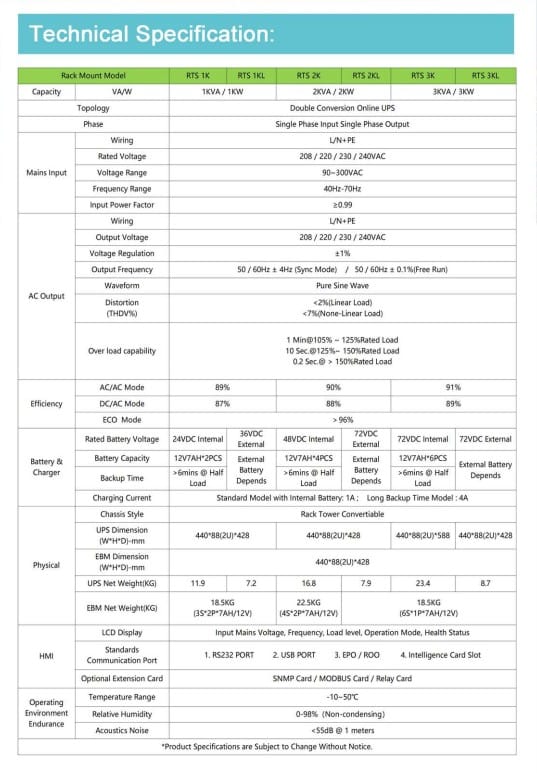

Rack Mount UPS
1kVA – 10kVA
Compact rack mounted UPS systems engineered for 19 inch racks, protecting servers, networking equipment, and IT infrastructure. Used in IT racks, server rooms, network infrastructure, and enterprise communication systems.
08.
UPS Batteries & Accessories
Runtime dependent (internal & external)
Includes VRLA and lithium battery systems, external battery cabinets, maintenance bypass panels, and monitoring accessories for extended backup duration. Used in all UPS installations.
Our Product Catalogue
P SERIES
(0.5kVA-3kVA)
- Line interactive UPS
- Intelligent CPU control
- Auto restart while AC is recovering
- Boost and buck AVR for voltage stabilization
- Cold start function
- Off mode charging
- Optional USB or RS-232 communication port，RJ-45 and SNMP
- 1ph in/1ph out
- Offering LED and LCD panels for selection, multi color panel
- Can be used for Personal Computers, Printer, POS, Terminal Security System, Fax Machine, Modem and Routers

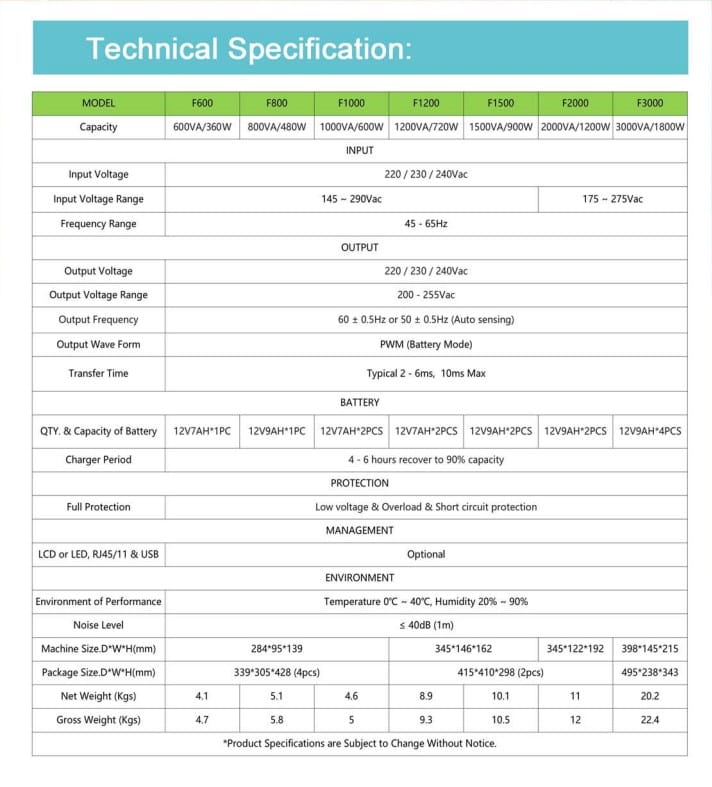

F SERIES FUTURE STAR
(0.6kVA-3kVA)
- LED/LCD display
- Low battery alarm
- Auto restart while AC recovers
- Optional Smart RS-232 or USB communication port
- Intelligent CPU control and management, the function is rich, support RS232 and USB communication monitoring
- Adopts the full bridge inverter technology
- 1ph in/1ph out
- Short circuit protection(battery mode), easy maintenance and reliable
- Wide input voltage and frequency range, overload alarm message and automatic protection function

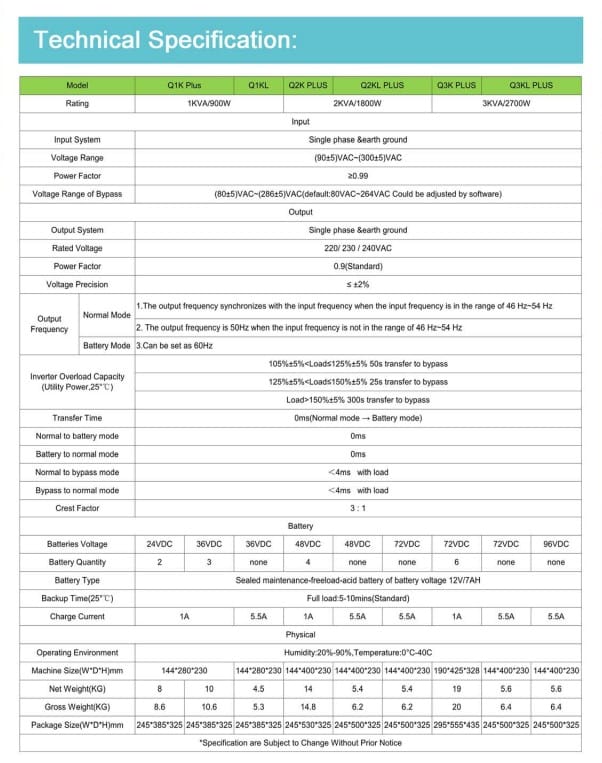

Q SERIES QUEEN STAR
(1kVA-3kVA)
- 0.9 Power Factor, 1kVA=0.9kW
- Large LCD display
- Zero power switch delay
- Active input power factor correction (PFC)
- Three level inverter technology
- 94.5% efficiency
- Real time current limit + DSP technology
- 1ph in/1ph out
- Wide range of input voltage and frequency + Active load management
- Output frequency is 50Hz in normal mode (can be set to 60Hz in battery mode)
S SERIES SUN STAR
(1kVA-10kVA)
- Robust design, conformal coating and anti corrosion capabilities
- Extra wide input voltage (90V-300Vac)
- Highly compatible with gen sets and open to customization
- High frequency online UPS
- Double conversion true online UPS with pure sine wave output
- Input power factor correction, power efficent
- Strong loading capabilities , works well with laser printers and ultrasonic cleaners
- 1ph in/1ph out
- Seamless integration with automatic control system

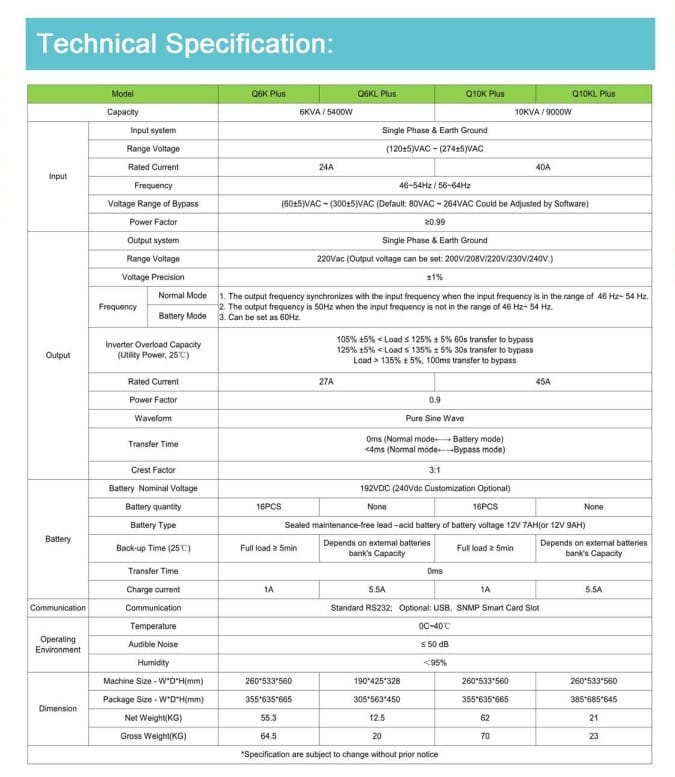

Q SERIES QUEEN STAR
(6kVA-10kVA)
- High frequency online UPS
- 1ph in/1ph out
- Three level inverter, real time current limit and DSP technology
- 0.9 output power factor, digital LCD screen and zero transfer time
- Active input power factor correction (PFC) + wide range of input voltage and frequency
- Sufficient expansion slots for USB,AS400,CMC monitoring, SNMP, RS485 and EMD environment monitoring
- Active load management and cold start function
- Protection for all types of power problems

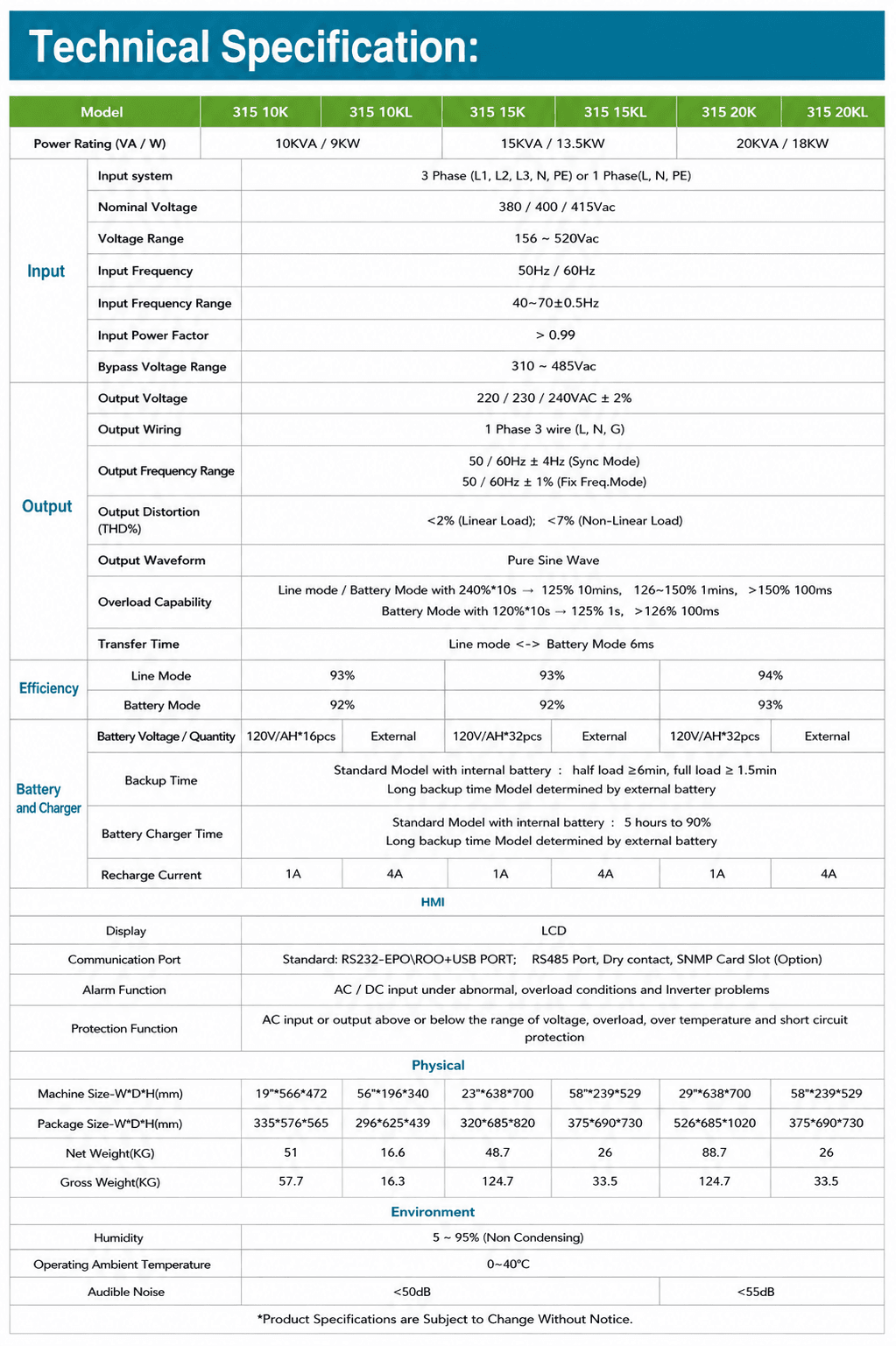

31 S SERIES
(10kVA-20kVA)
- High frequency online UPS
- 3ph in/1ph out
- Double conversion true online UPS with pure sine wave output
- Robust design, conformal Coating, strong anti corrosion capabilities for harsh environments
- Extra wide input voltage (85V-300Vac), compatible with gen-set
- Input power factor correction and power saving
- Compact size and open to customization
- Seamless integration with Automatic Control System
- Strong loading capabilities

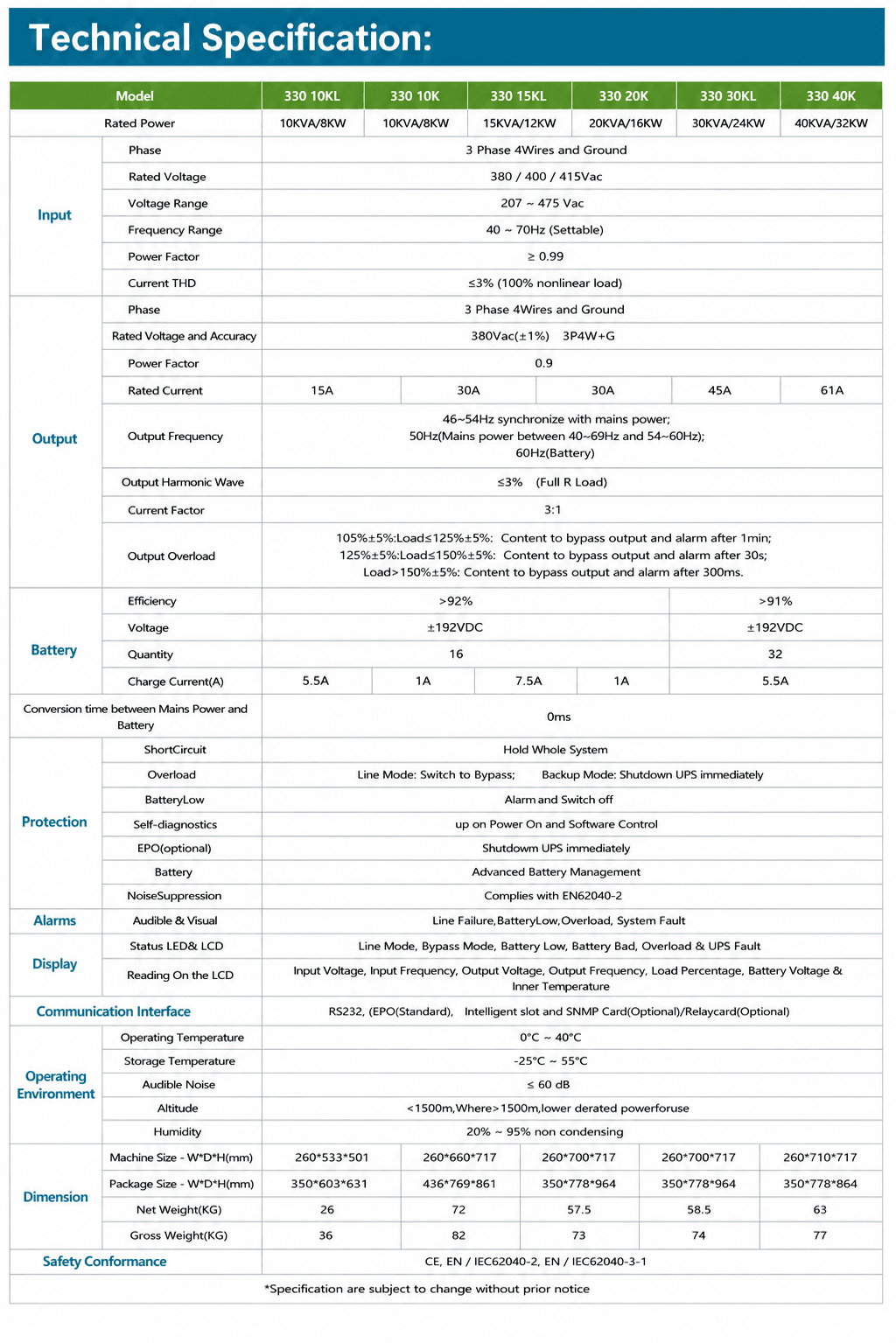

33 Q SERIES QUEEN STAR
(10kVA-40kVA)
- High frequency online three-in and three-out UPS
- Efficiency is up to 93%, supports N+X parallel redundancy as well
- Optimized tower structure design to save space
- 3ph in/3ph out
- Visualized LCD display interface, clear and intuitive display of the three-phase system
- 10-20K standard machine integrated design with battery built-in
- DSP + IGBT technology
- Active power factor correction in all phases
- Output Power Factor is 0.9

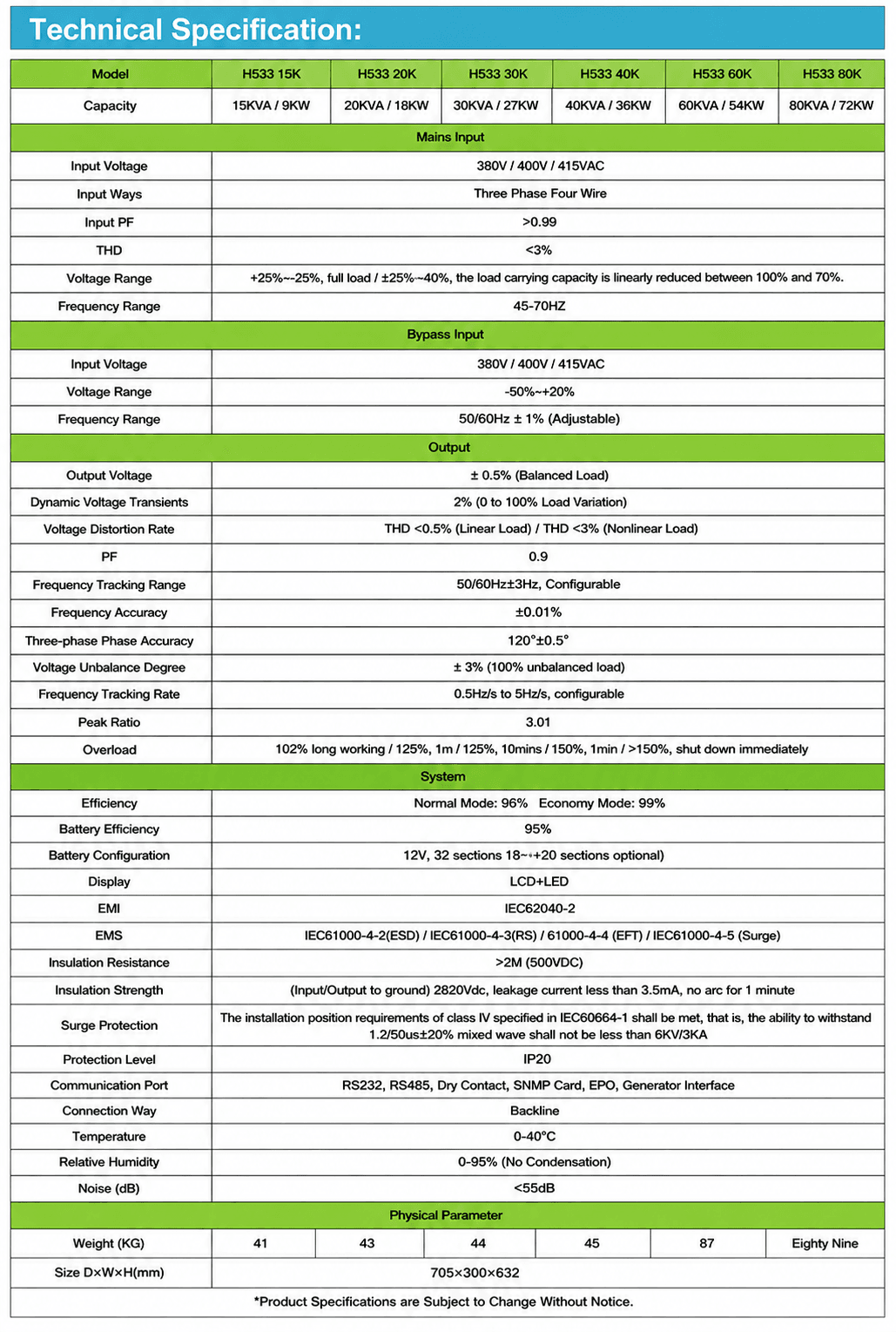

HS33 SERIES
(10kVA-80kVA)
- Output Power Factor=0.9, Input Power Factor=0.99
- DSP technology
- Digital circulation control technology with high reliability
- supports 380/400/415V and 50/60Hz power grid systems
- Ultra-wide input voltage and frequency range, adapts to harsh power grid environments and various fuel generators
- input harmonic current is less than 3% and the efficiency of the machine is more than 95%
- Very long average trouble-free time (200k hours) and very low average maintenance time (<30mins)

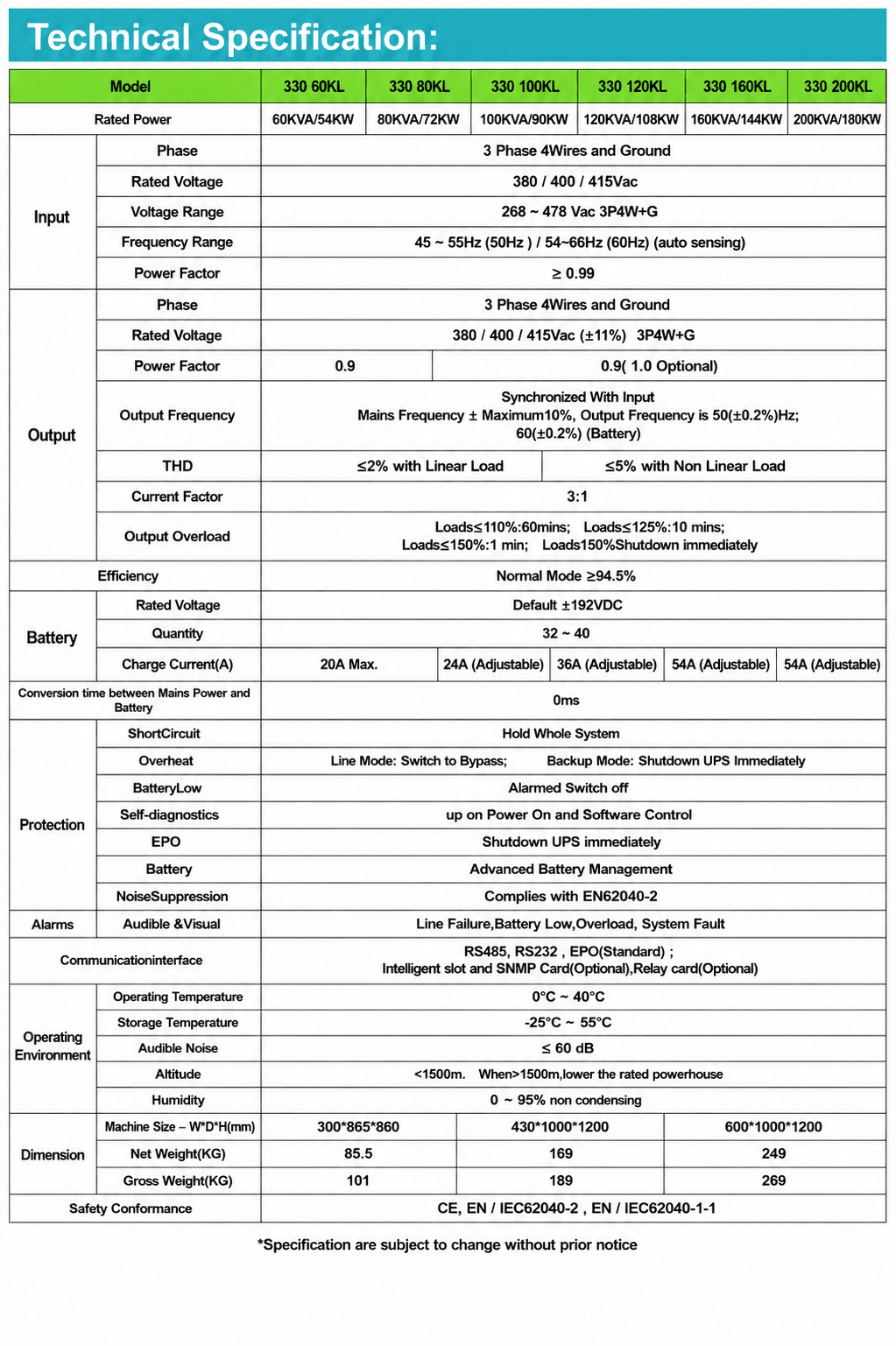

33 Q SERIES QUEEN STAR
(60kVA-200kVA)
- DSP + IGBT technology
- Output power factor 0.9, 0.8 also available
- Active power factor correction in all phases
- Emergency power off function (EPO)
- Advanced DSP digital control makes the control system more reliable
- Online UPS with double transform on-line design
- 3ph in/3ph out
- Intelligent charging management,±16 – ±20pcs(32-40pcs) batteries
- USB or RS485 communication interface, SNMP card and parallel board are optional

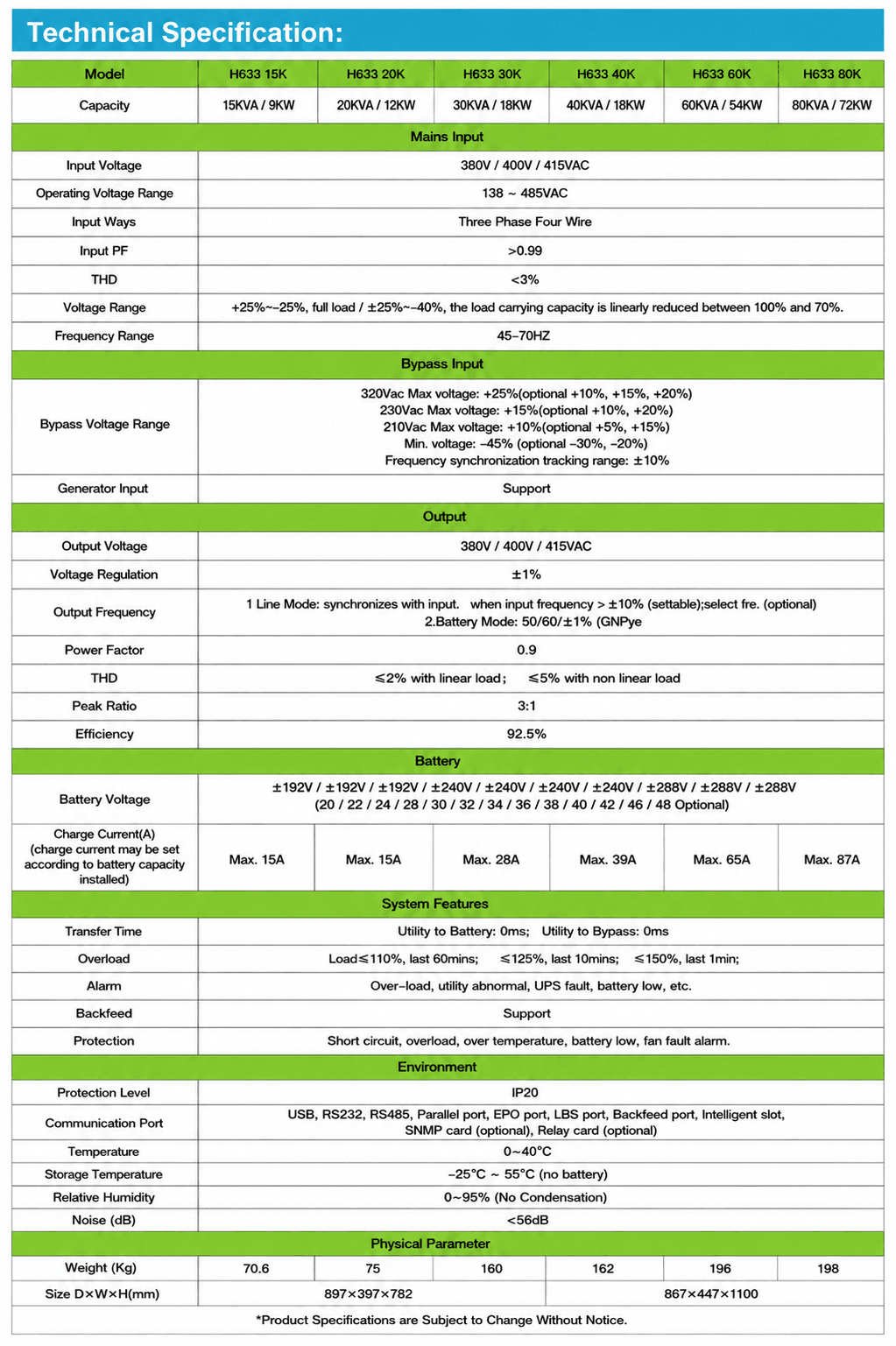

HS33 SERIES
(60kVA-200kVA)
- Output Power Factor=0.9, Input Power Factor=0.99
- DSP technology
- Digital circulation control technology with high reliability
- supports 380/400/415V and 50/60Hz power grid systems
- Ultra-wide input voltage and frequency range, adapts to harsh power grid environments and various fuel generators
- input harmonic current is less than 3% and the efficiency of the machine is more than 95%
- Very long average trouble-free time (200k hours) and very low average maintenance time (<30mins)

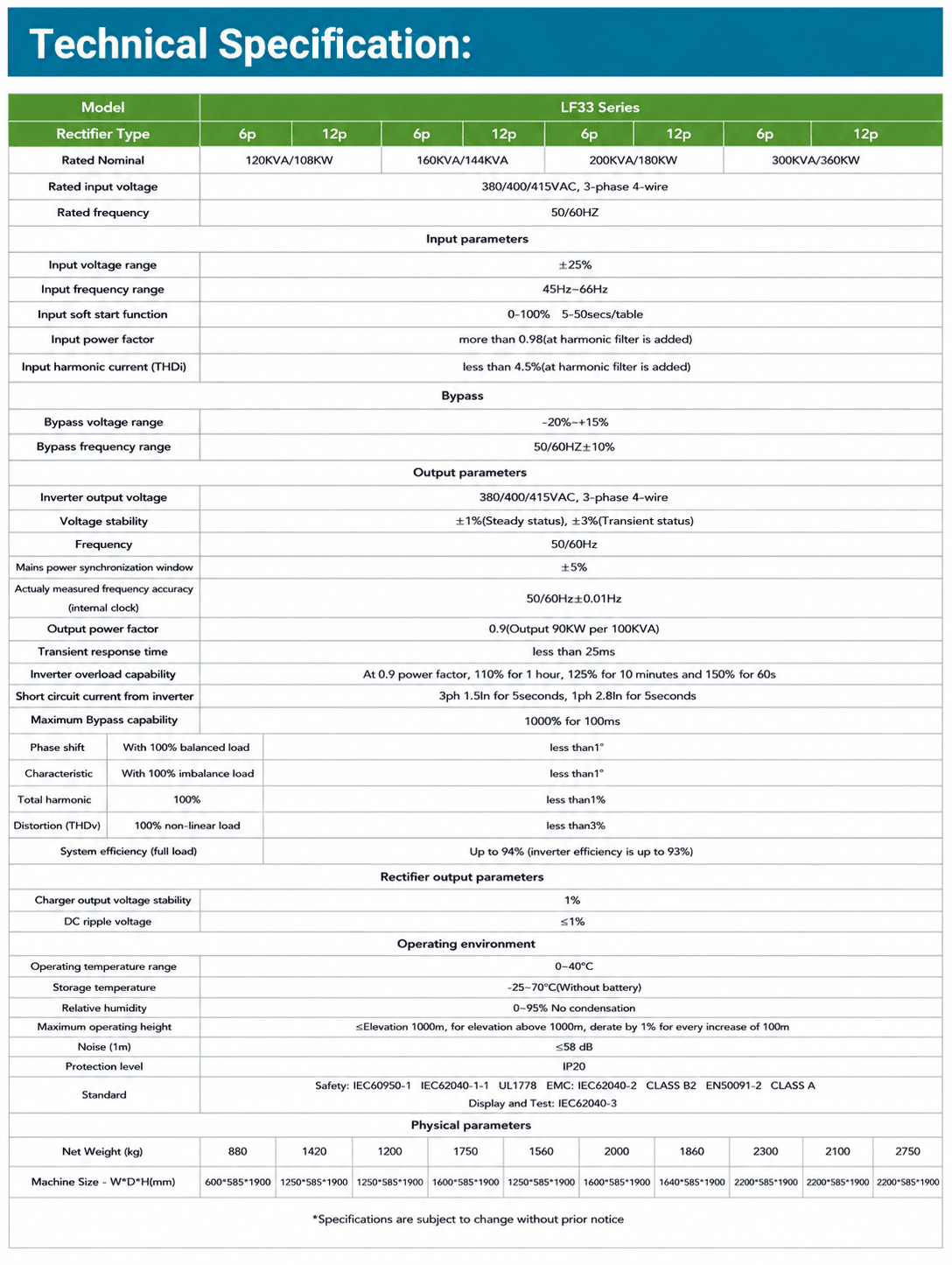

LF33 SERIES
(120kVA-400kVA)
- Low Frequency Online UPS
- 0.9 output power factor, up to 6 units in parallel
- 6-inch extra large LCD that display 12 languages
- The efficiency of the machine is more than 94%, (98% in ECO mode)
- 6th generation DSP control, intelligent battery management
- Extra strong capability to withstand output overload and short circuits
- 3ph in/ 3ph out
- Extra wide input voltage and frequency range makes it adaptable to power grid environments
- Standard input/output filter improves the system’s EMC performance

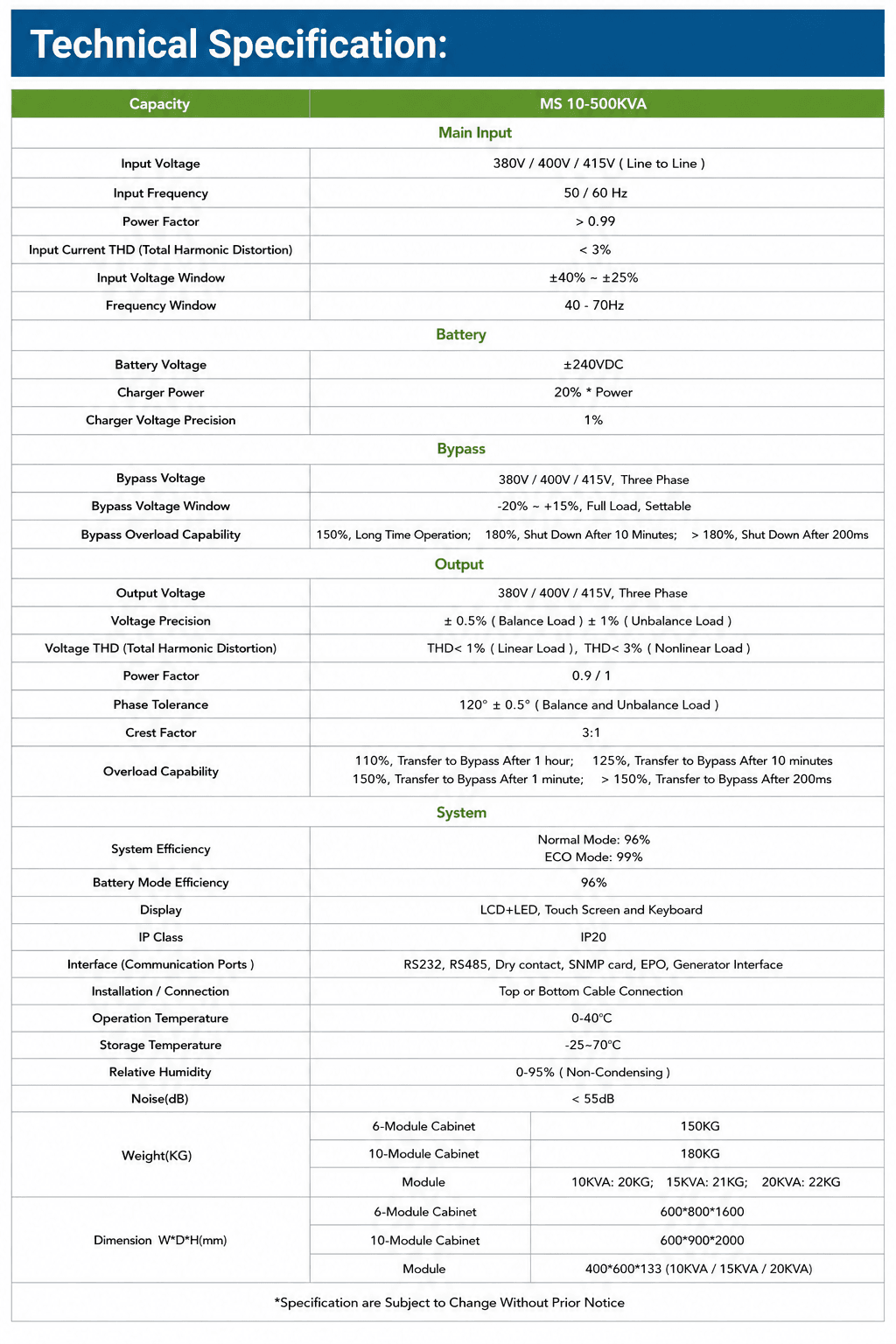

MS SERIES MELODY STAR
(10kVA-500kVA)
- Modular Online UPS with modular design and hot swappable
- IGBT modules rather than discrete components are applied in the power module
- Double DSP controller for individual power modules
- Strong load adaptability for linear and nonlinear load
- Incredible low noise system design + intelligent module and system protection design
- Digital paralleling technology, very low circle current between modules
- 3ph in/ 3ph out

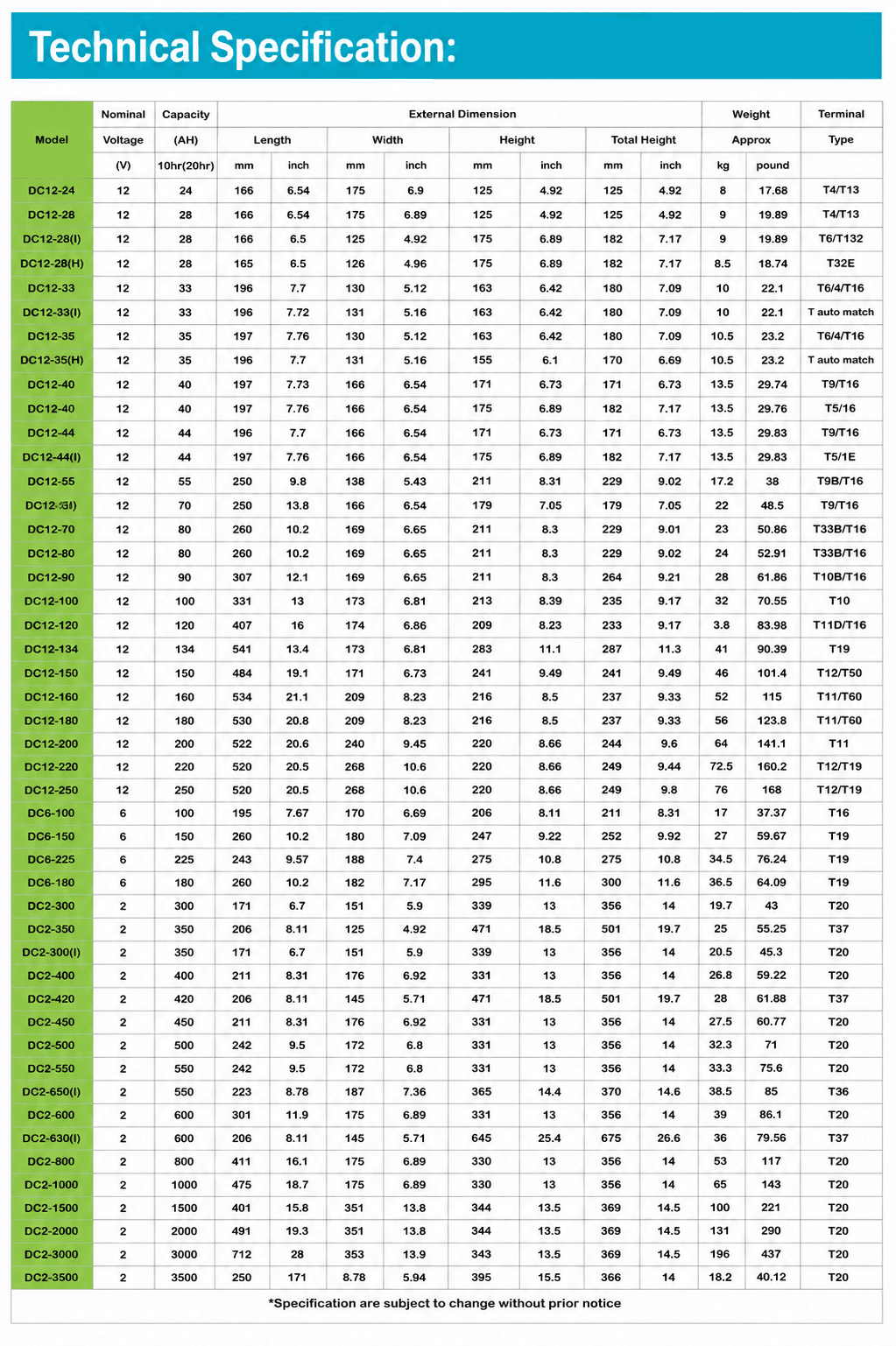

DEEP CYCLE BATTERY
(24Ah-3000Ah)
- Longer service lifetime, with 100% DOD
- Low inter resistance and easy charging
- Low self-discharge: lower than 3% of rated capacity per month under normal operating temperature
- ABS case (can be made with flame retardant V0)
- No memory effect after repetitious usage or discharges
- Sealed construction and leak proof
- Safety valve regulated system
- Deep discharge recovery
- Wide operating temperature range

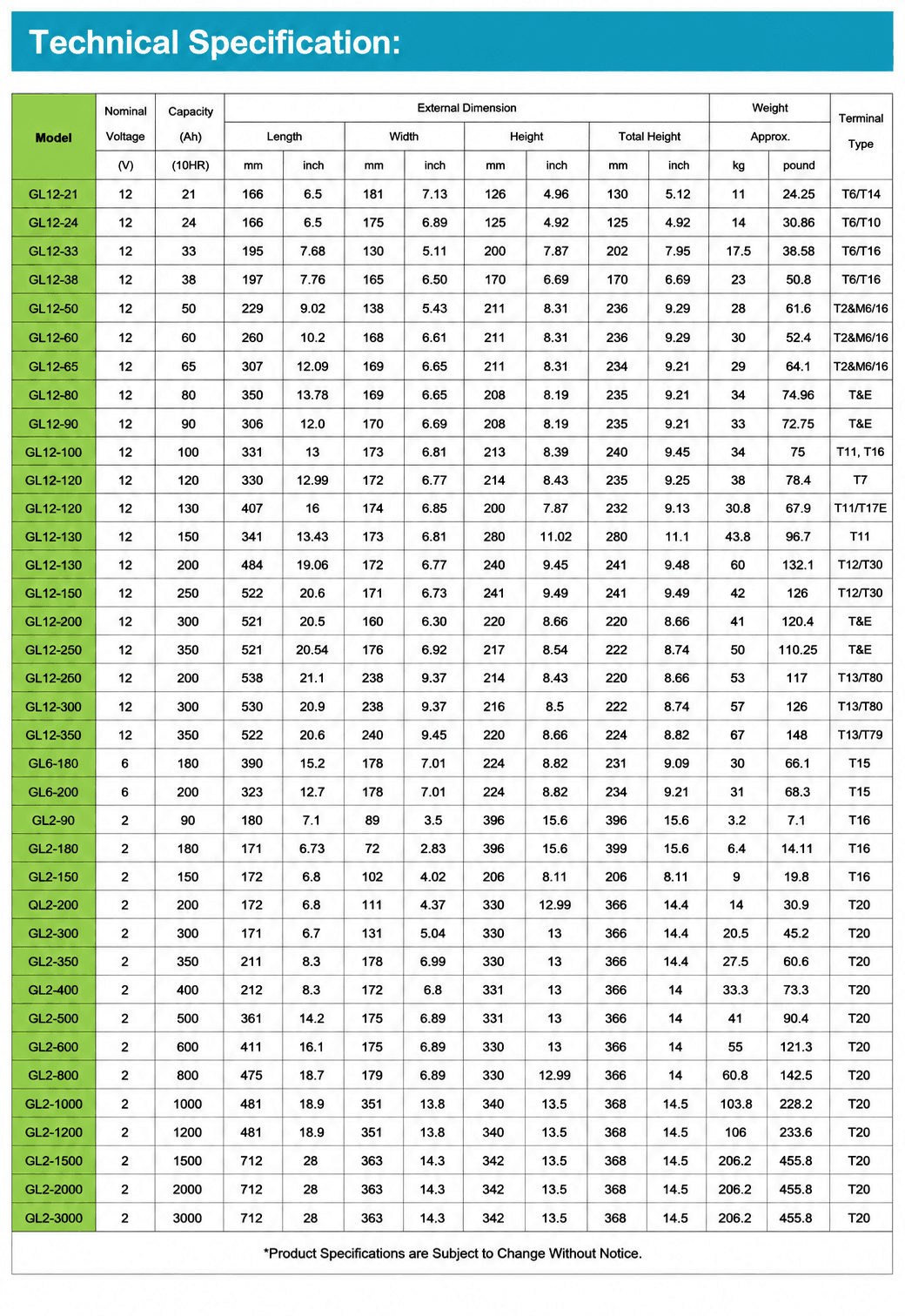

GEL BATTERY
(31Ah-3000Ah)
- Gel Inside ensures a longer service lifetime
- Able to operate in temperatures ranging from -40℃ to +65℃
- Good deep discharge cycle capabilities with safety valve regulated systems
- Low self-discharge: lower than 3% of rated capacity per month under normal operating temperatures
- ABS case (can be made with flame retardant V0)
- No memory effect after repetitious usage or discharges
- Sealed construction and leak proof
- High reliability and quality

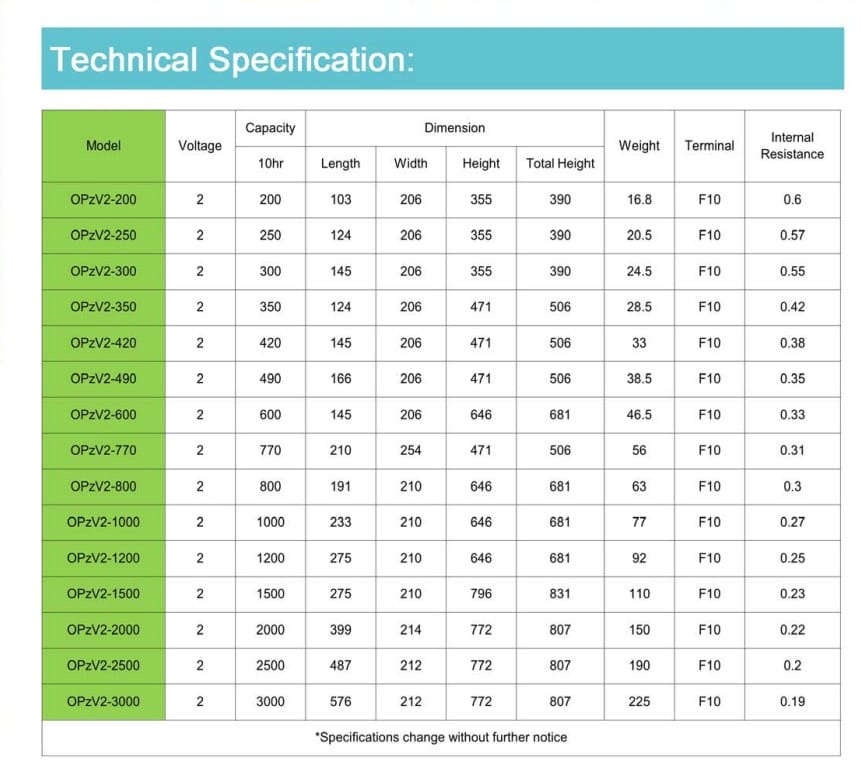

OPzV BATTERY
(60Ah-3000Ah)
- OPzV Tubular Gel maintenance free battery
- Designed for a lifetime of 18+ years with a warranty 5 years
- Cyclic usage: 80% DOD, >1200 cycles
- Positive Plates: Robust tubular plates consisting of Pb-Ca-Sn alloy, offering an extremely high cycling expectancy
- Negative Plates: Grid plate construction consisting of lead calcium alloy
- Separator: Microporous and robust PVC-SiO2 separator for positive and negative plates
- Container: ABS (UL94-HB), UL94-V1 also available upon request

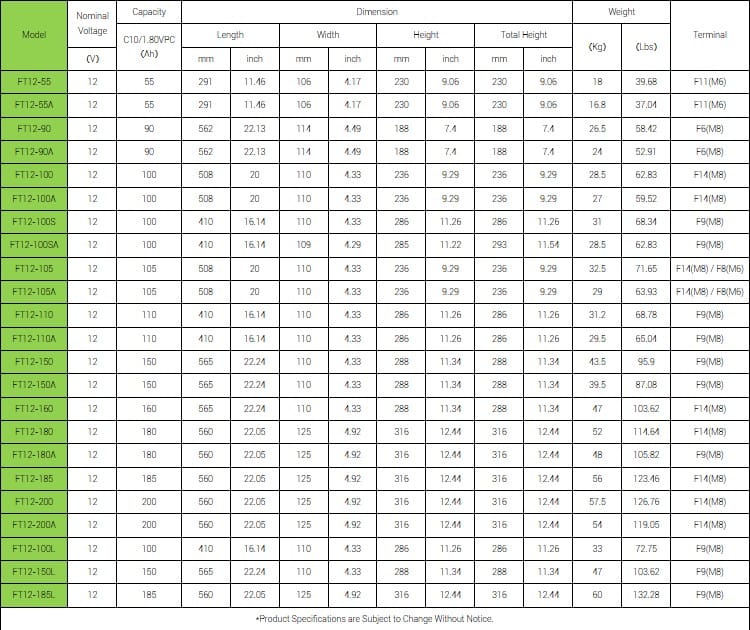

FRONT TERMINAL BATTERY
(55Ah-185Ah)
- Valve-Regulated Lead-Acid battery
- Voltage class: 12V
- Capacity range: 55Ah~185Ah
- FT (Front Terminal) Series is specially designed for telecom use with 12 years design life in float service
- Battery can be installed in any position while maintaining reliability by adopting a new AGM separator and centralized venting system
- Designed for 19″ and 23″ cabinet installation
- Suitable for UPS/EPS applications
- Excellent high rate discharge performance and low self-discharge rate

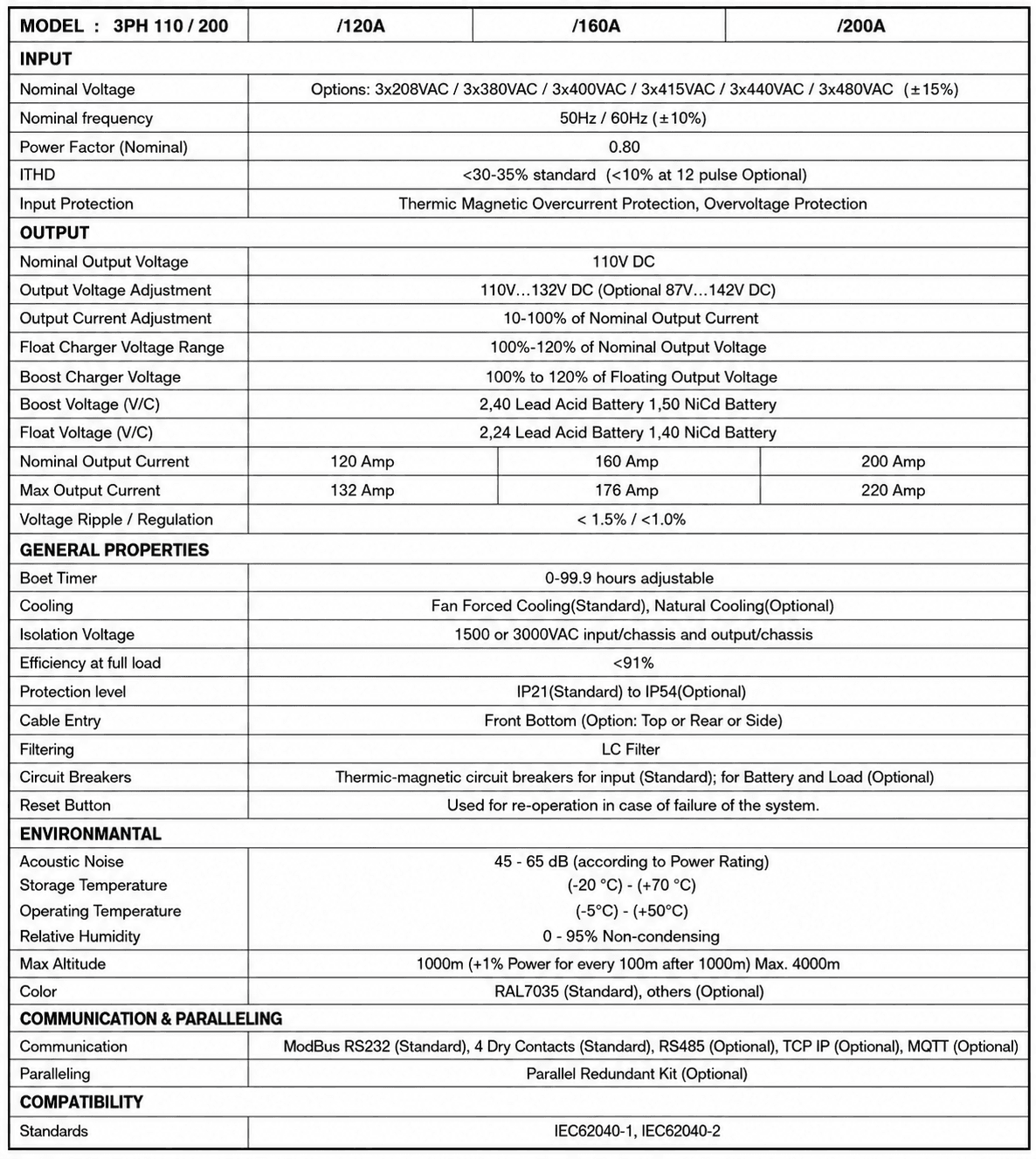

3PH 110/200 RECTIFIER
- Internal Isolation Transformer at input
- Full Digital Controlled Conventional Rectifier
- Soft Start, Smart control and high reliability with Digital Signal Processor
- Float charge, equalizing charge and boost charge modes
- Low output voltage ripple and automatic+manual charge modes
- User panel with LCD display, showing measurements, status and alarm messages
- DC Low, DC High, Line Failure, Over Temperature, Short Circuit protections
BATTERY CHARGER
- Designed for 24VDC,30VDC and 110VDC
- Current ranging from 10A to 250A
- Designed as a Single Charger, Dual Charger and Duty/Standby Application
- Thyristor Control
- Suitable for SLA and Nickel-Cadmium Battery
- Suitable for Substations, HT Rooms (33kV/11kV) and 415V Switchroom
- Contact us today for the full specifications of the product:
Not sure which UPS system you need?
Contact us today for a tailored recommendation based on load requirements, runtime, redundancy, and application needs.
